Index Compatibility and Properties



Overview

As the product is updated, or if there was an unforeseen error during index creation, indexes may become incompatible and will throw errors when trying to access them. The EIQ Server Configuration Tool can display and troubleshoot index properties and fix these compatibility issues all on one screen.



EIQ Index Manager

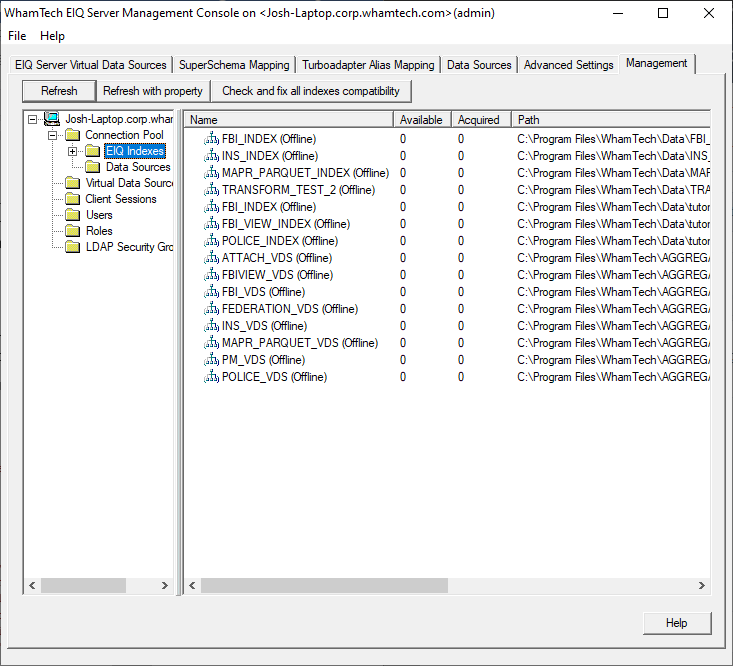

The EIQ Index management panel can be found in the EIQ Server Configuration Tool under the Management Tab, expanding the server node, and expanding the Connection Pool folder.

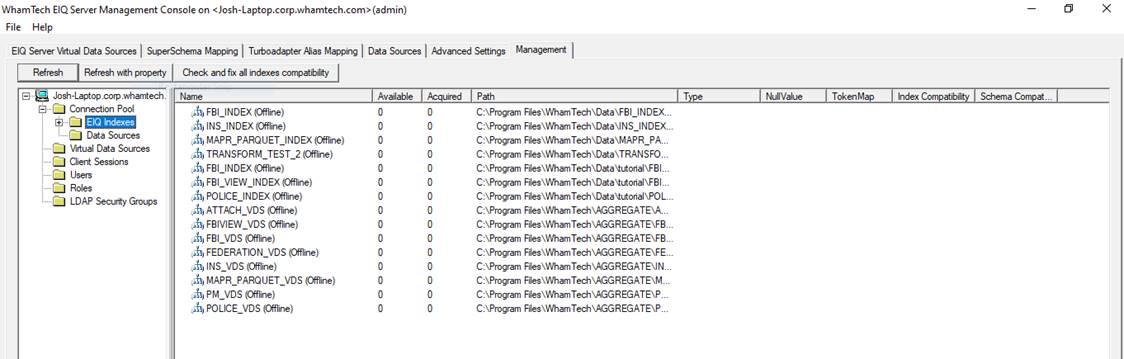

The UI in this window shows all of the EIQ Indexes that have been used to create a Virtual Data Source, if it is available, if there is a connection to it, and the physical path to the index file. With the compatibility update, this window now shows four more elements related to compatibility:



Type -

EIQ Index – displays the index to index external database like ORACLE,SQL Server, MySQL, etc.

Aggregation WorkSpace – a stored material view or any temporary result set for aggregation.



NullValue -

True NULL – indicates an index built with DBOPTION N. The NULL value was considered as the least value.

NULL_METADATA – indicates an index built without DBOPTION N or DBOPTION F. The order of NULL values is dependent on the null metadata defined for each data type (see \Common\include\ddl\ddl_defsCommon.h) which presents the problem or sorting the records by the key.

NULL_ NULL_METADATA_FIRST – indicates an index built with DBOPTION F. The NULL value was considered as the least value.



TokenMap -

Off – index or database was built without token map or the index opened with token map off.

On (Table) – index or database was built with the columnsTOKENMAP ETL#_MappedColumns ETL#_SchemaName ETL#_TableName ETL#_ColumnName ETL#_IndexTableName ETL#_IndexColumnName in the dbd and the token map data was stored in ETL#_MAPPEDCOLUMNS.

On (Auto) – index or database was built with TOKENMAP AUTO in the dbd. Index or DB with a different TokenMap mode cannot be attached together.



Compatibility -

Compatible – means there are no compatibility issue on NullVaue or the schema of SYS#_xxxx tables.

[NullValue] – compatibility issue present.

[SYS#_xxxx] – schema is not update to date.

The scope of fix compatibility through UI is limited by the NullValue and schema of SYS#_xxx tables.



Fixing Compatibility Issues

Before applying a compatibility fix, it is highly recommended to make a backup of the index first. The quickest and easiest method of backing up the index is going to the folder where the index is stored and making a copy of the entire index; leaving the (Copy) tag or using a custom tag to keep track of it. To restore a backup, delete the new index folder and all it’s contents then rename the backup to the original name.

After any desired backups are made, Click on the EIQ Indexes folder under the Connection Pool tree item under the Management Tab.

Click the “Refresh with property” button to get the index properties. For performance reasons, properties are not retreived for offline indexes by default.

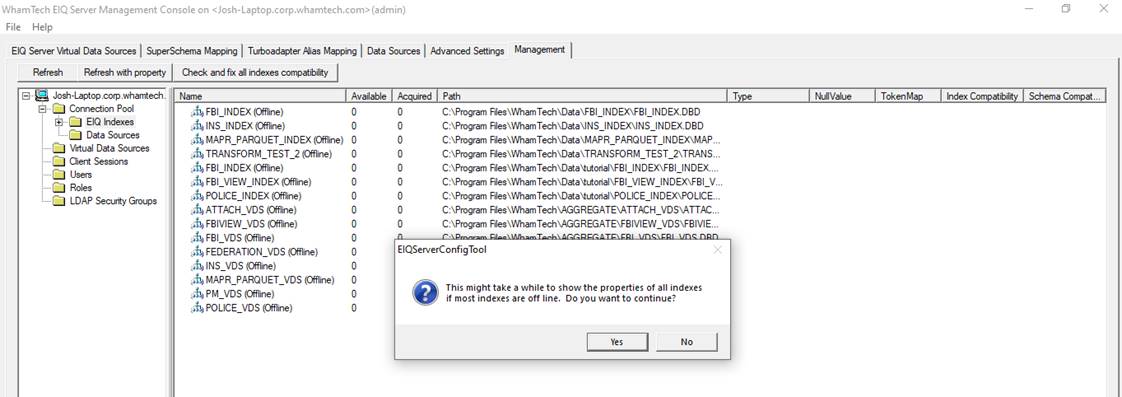

A pop-up display will warn the user that the returning the property for each index may take a lot of time. Click ‘Yes’ to continue. The EIQ index connection pool will be refreshed with the property of each index.

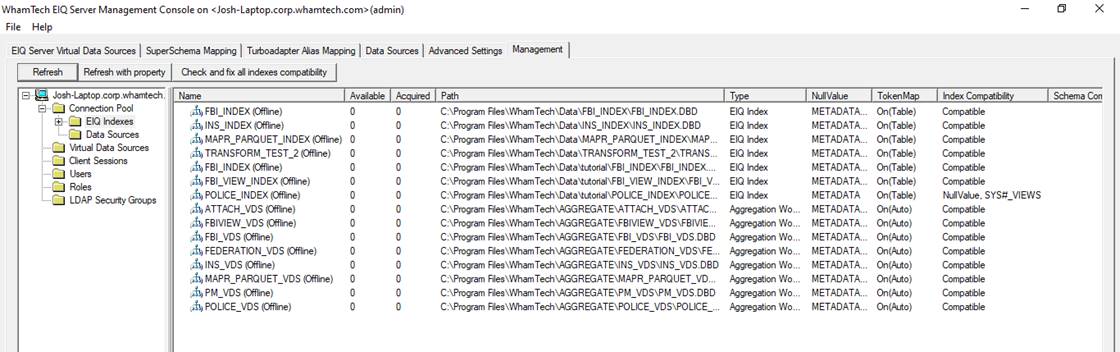

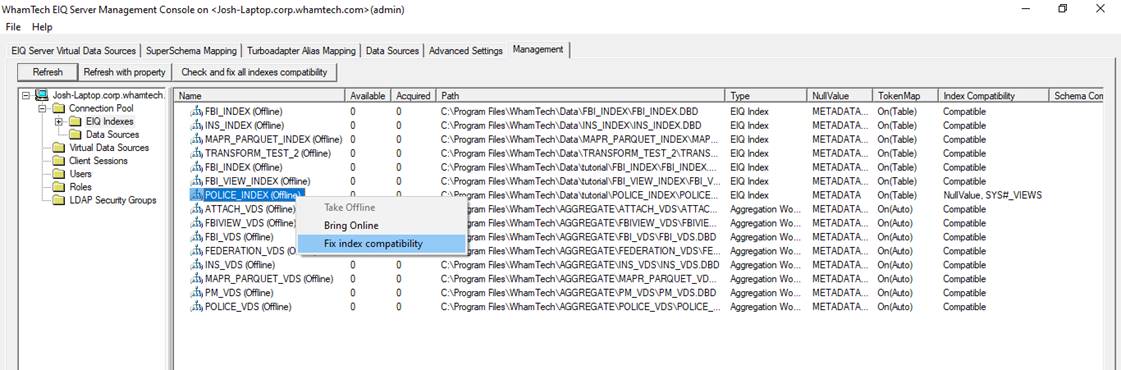

In the example shown above there are compatibility issues. The POLICE_INDEX located in C:\Program Files\WhamTech\Data\tutorial has a NullValue issue and a SYS#_VIEWES schema issue. To fix the compatibility issues, right click the index item in the list and select ‘Fix index compatibility’ or click the “Check and fix all indexes compatibility” button to fix all issues at the same time.

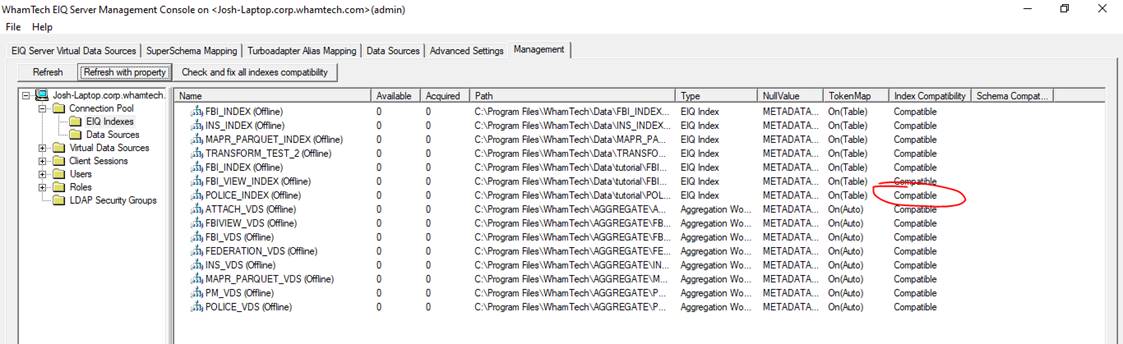

After performing the compatibility fix, click the “Refresh with property” button again to show the latest property to see if the Compatibility column updates to “Compatible”.

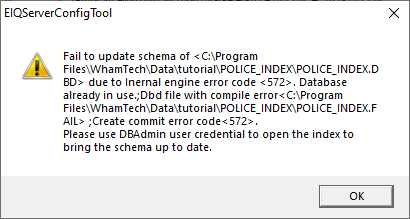

Depending on the issues, some compatibility fixes may fail.

To fix these issues, open the index using the EIQ Server RTI tool and either refresh the indexes or rebuild them.



Querying Compatibility Fix Results

Query results are different on the order of (null) between TureNULL and NULLMETA using ddtl.

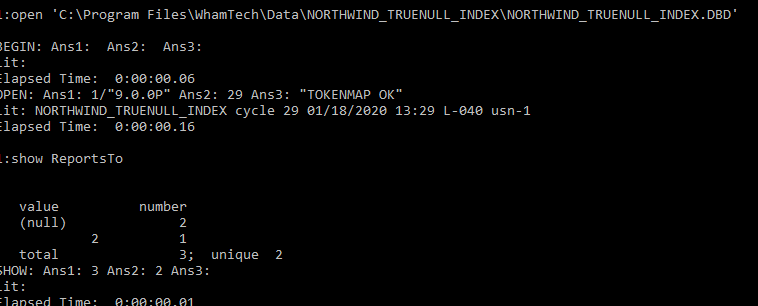

TrueNULL – (null) always is the first record on show command

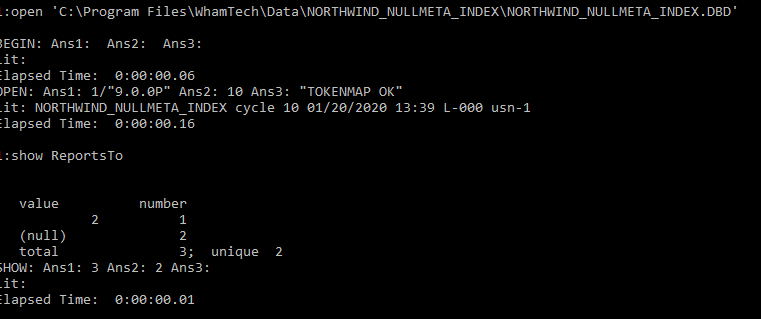

NullMeta:

The (null) of ReportsTo, which is a 4 bytes integer, appears at the end.

After the fix, both should show (null) at the beginning which means null is the least value.
